SUS 304 316 316L Stainless Steel Crimped Woven Wire Mesh Screen For Sand Stone Sieve Screen Mining
Crimped wire mesh is also known as pre-crimped wire mesh or plaited wire mesh.

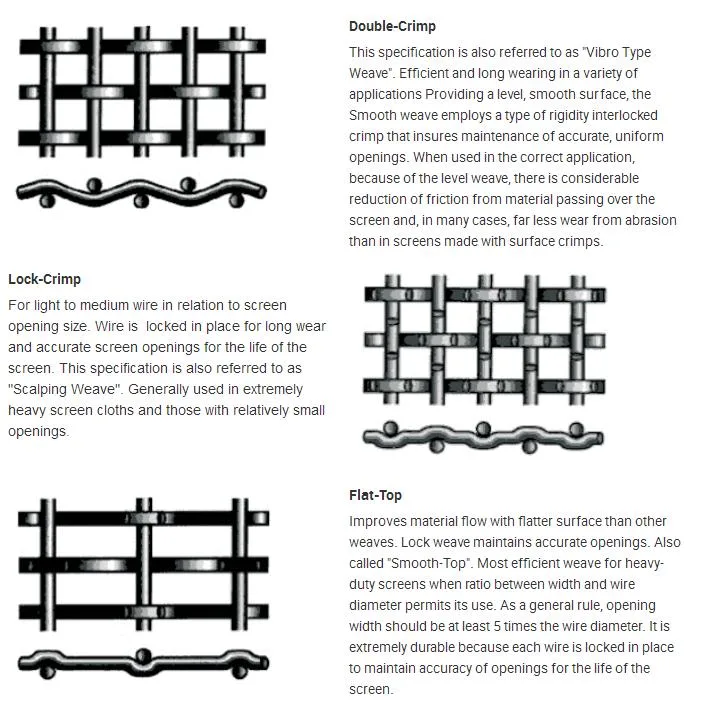

Types of crimped wire mesh: lock-crimped,inter-crimped,double-crimped, flat top crimped,multi-crimped or plain weave.
Raw materials of crimped wire mesh: stainless steel wire, Manganese steel wire(65Mn), low carbon steel wire, copper wire, Titanium wire, etc.
Crimped Wire Mesh Application
1/Stainless steel crimped wire mesh for screening / sieving, commonly used in food processing industry, such as barbeque mesh.
2/Powder coated, brass or stainless steel crimped wire mesh can be used in decoration,such as exterior wall.
3/High tensile steel crimped wire mesh generally used in mine industry, such as quarry screen mesh.
4/Flat top crimped wire mesh used for pig raising.
5/Crimped wire mesh for fan cover.
6/Crimped wire mesh used as fence.
Part specs of crimped wire mesh
| Aperture | Aperture Tolerance (mm) | Wire Dia. | Edge Length (mm) | Weight |
| mm | Min. | Max. | mm | Min. | Max. | KG/SQM |
| 101.60 | 98.55 | 104.65 | 12.70 | 12.70 | 50.80 | 17.92 |
| 88.90 | 86.23 | 91.57 | 12.70 | 12.70 | 44.45 | 20.16 |
| 76.20 | 73.91 | 78.49 | 12.70 | 12.70 | 38.10 | 23.04 |
| 63.50 | 61.60 | 65.41 | 12.70 | 12.70 | 31.75 | 26.88 |
| 63.50 | 61.60 | 65.41 | 9.19 | 9.19 | 31.75 | 14.76 |
| 57.15 | 55.44 | 58.86 | 9.19 | 9.19 | 28.58 | 16.17 |
| 50.80 | 49.28 | 52.32 | 12.70 | 12.70 | 25.40 | 32.26 |
| 50.80 | 49.28 | 52.32 | 11.10 | 11.10 | 25.40 | 25.28 |
| 50.80 | 49.28 | 52.32 | 9.19 | 11.10 | 25.40 | 17.88 |
| 50.80 | 49.28 | 52.32 | 7.92 | 7.92 | 25.40 | 13.57 |
| 44.45 | 43.12 | 45.78 | 9.19 | 9.19 | 22.23 | 20.00 |
| 44.45 | 43.12 | 45.78 | 7.92 | 7.92 | 22.23 | 15.21 |
| 41.28 | 40.04 | 42.51 | 9.19 | 9.19 | 20.64 | 21.25 |
| 41.28 | 40.04 | 42.51 | 7.92 | 7.92 | 20.64 | 16.19 |
| 38.10 | 36.69 | 39.24 | 9.19 | 9.19 | 19.05 | 22.68 |
| 38.10 | 36.69 | 39.24 | 7.92 | 7.92 | 19.05 | 17.31 |
| 38.10 | 36.69 | 39.24 | 7.19 | 7.19 | 19.05 | 14.49 |
| 31.75 | 30.80 | 32.70 | 9.19 | 9.19 | 15.88 | 26.20 |
| 31.75 | 30.80 | 32.70 | 7.92 | 7.92 | 15.88 | 20.08 |
| 31.75 | 30.80 | 32.70 | 7.19 | 7.19 | 15.88 | 16.85 |
| 28.58 | 27.72 | 29.43 | 7.92 | 7.92 | 14.29 | 21.83 |
| 28.58 | 27.72 | 29.43 | 7.19 | 7.19 | 14.29 | 18.35 |
| 25.40 | 24.64 | 26.16 | 7.92 | 7.92 | 12.70 | 23.91 |
| 25.40 | 24.64 | 26.16 | 7.19 | 7.19 | 12.70 | 20.14 |
| 19.05 | 18.48 | 19.62 | 5.72 | 5.72 | 9.53 | 16.78 |
| 15.88 | 15.40 | 16.35 | 4.50 | 4.50 | 7.94 | 12.62 |
| 11.00 | 10.67 | 11.33 | 4.00 | 4.00 | 5.50 | 13.55 |
| 10.00 | 9.70 | 10.03 | 4.00 | 4.00 | 5.00 | 14.51 |
| 8.00 | 7.76 | 8.24 | 4.00 | 4.00 | 4.00 | 16.93 |
| 6.35 | 6.16 | 6.54 | 2.67 | 2.67 | 3.18 | 10.04 |
| 6.30 | 6.11 | 6.49 | 2.50 | 2.50 | 3.15 | 9.93 |
| 4.00 | 3.88 | 4.12 | 2.00 | 2.00 | 2.00 | 9.31 |
| 3.00 | 2.91 | 3.09 | 2.00 | 2.00 | 2.00 | 11.17 |
| 2.00 | 1.94 | 2.06 | 1.50 | 1.50 | 1.50 | 8.99 |
